IPS7091 INTELLIGENT POWER HIGH SIDE SWITCH

The IPS7091(G)(S)PbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited at Ilim value. Current limitation is activated until the thermal protection acts. The.

IPS7091 Features

* Over temperature shutdown (with auto-restart)

* Short circuit protection (current limit)

* Active clamp

* Open load detection

* Logic ground isolated from power ground

* ESD protection

* Ground loss protection

* Status feedback Descri

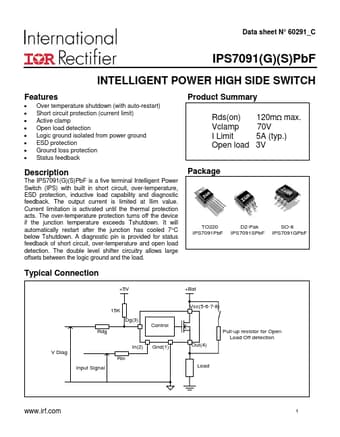

IPS7091GPBF_InternationalRectifier.pdf
