IR20153SPbF - HIGH SIDE DRIVER WITH RECHARGE

International Rectifier

📥 Download Datasheet

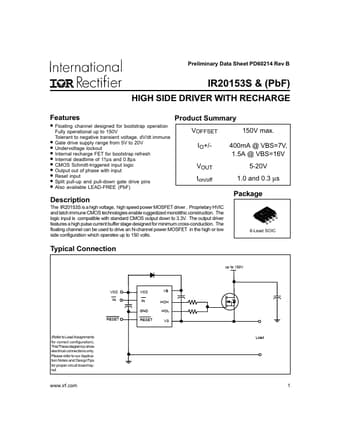

IR20153SPbF Datasheet Preview — Preview of IR20153SPbF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IR20153SPbF
Manufacturer: International Rectifier
File Size: 220.18 KB
Datasheet: IR20153SPbF_InternationalRectifier.pdf
Description: HIGH SIDE DRIVER WITH RECHARGE

IR20153SPbF Product details

Description

The IR20153S is a high voltage, high speed power.

Features

Floating channel designed for bootstrap operation Fully operational up to 150V Tolerant to negative transient voltage, dV/dt immune Gate drive supply range from 5V to 20V Undervoltage lockout Internal recharge FET for bootstrap refresh Internal deadtime of 11µs and 0.8µs CMOS Schmitt-triggered input logic Output out of phase with input Reset input Split pull-up and pull-down gate drive pins Also a.
