IR2103PBF

Half-Bridge Driver

IR2103PBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V

* Tolerant to negative transient voltage

* dV/dt immune

* Gate drive supply range from 10 to 20V

* Undervoltage lockout

* 3.3V, 5V and 15V logic compatible

* Cross-conduction prevention l

IR2103PBF General Description

Package Options The IR2103(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or L.

IR2103PBF Datasheet (1.05 MB)

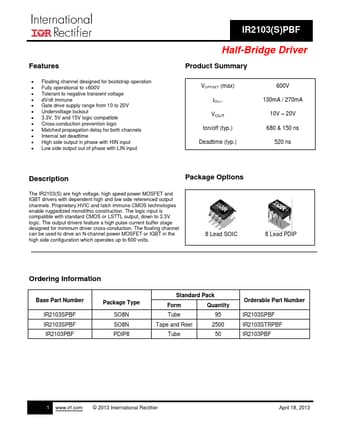

Preview of IR2103PBF PDF

Datasheet Details

Part number:

IR2103PBF

Manufacturer:

International Rectifier

File Size:

1.05 MB

Description:

Half-bridge driver.
