IR2103SPBF

Half-Bridge Driver

IR2103SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V

* Tolerant to negative transient voltage

* dV/dt immune

* Gate drive supply range from 10 to 20V

* Undervoltage lockout

* 3.3V, 5V and 15V logic compatible

* Cross-conduction prevention l

IR2103SPBF General Description

Package Options The IR2103(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or L.

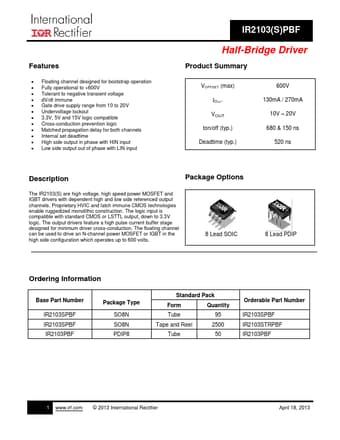

IR2103SPBF Datasheet (1.05 MB)

Preview of IR2103SPBF PDF

Datasheet Details

Part number:

IR2103SPBF

Manufacturer:

International Rectifier

File Size:

1.05 MB

Description:

Half-bridge driver.
