IR2103S HALF-BRIDGE DRIVER

Package Options The IR2103(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or L.

IR2103S Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V

* Tolerant to negative transient voltage

* dV/dt immune

* Gate drive supply range from 10 to 20V

* Undervoltage lockout

* 3.3V, 5V and 15V logic compatible

* Cross-conduction prevention l

IR2103S_InternationalRectifier.pdf

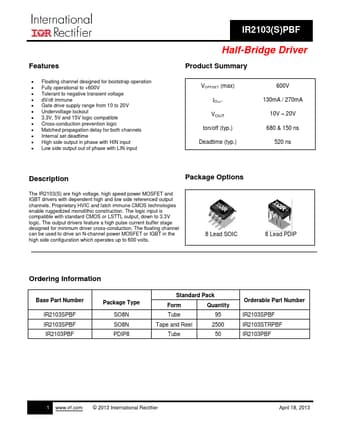

IR2103S Datasheet Preview — Preview of IR2103S PDF

Datasheet Details

Part number:

IR2103S

Manufacturer:

International Rectifier

File Size:

1.08 MB

Description:

Half-bridge driver.
