IR2110L4, HIGH AND LOW SIDE DRIVER

PD-60085B IR2110L4 .
The IR2110L4 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

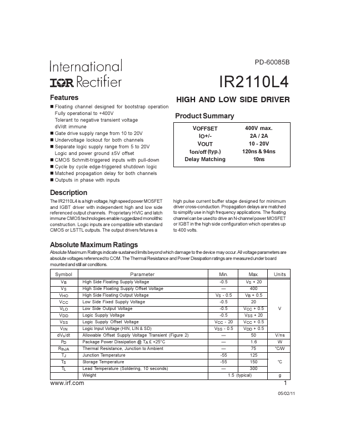

datasheet Preview Page 1 from Datasheet4u.com

IR2110L4-InternationalRectifier.pdf

IR2110L4 Datasheet Preview — Preview of IR2110L4 PDF

Datasheet Details

Part number:

IR2110L4

Manufacturer:

International Rectifier

File Size:

243.74 KB

Description:

HIGH AND LOW SIDE DRIVER

Features

* n Floating channel designed for bootstrap operation Fully operational to +400V Tolerant to negative transient voltage dV/dt immune n Gate drive supply range from 10 to 20V n Undervoltage lockout for both channels n Separate logic supply range from 5 to 20V Logic and power ground ±5V offset n CMOS Sc

Applications

* The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 400 volts. Absolute Maximum Ratings Absolute Maximum Ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute vol
