IR2110L6

HIGH AND LOW SIDE DRIVER

IR2110L6 Features

* Product Summary n Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune n Gate drive supply range from 10 to 20V n Undervoltage lockout for both channels n Separate logic supply range from 5 to 20V Logic and power ground ±5

IR2110L6 General Description

The IR2110L6 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The o.

IR2110L6 Datasheet (137.70 KB)

Rating: 1 ★ (5 votes)

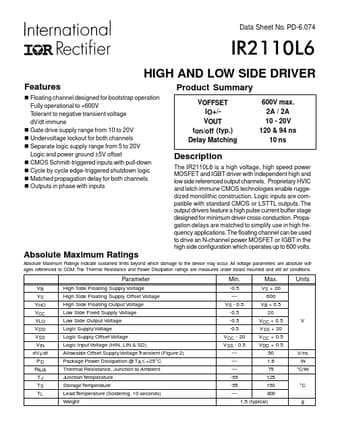

Preview of IR2110L6 PDF

Datasheet Details

Part number:

IR2110L6

Manufacturer:

International Rectifier

File Size:

137.70 KB

Description:

High and low side driver.
