IR2121 Datasheet, Driver, International Rectifier

IR2121 Features

  • Driver Product Summary
  • Gate drive supply range from 12 to 18V
  • Undervoltage lockout
  • Current detection and limiting loop to limit driven power transistor current

PDF File Details

Part number:

IR2121

Manufacturer:

International Rectifier

File Size:

156.36kb

Download:

📄 Datasheet

Description:

Current limiting low side driver. VOFFSET IO+/VOUT VCSth ton/off (typ.) 5V max. 1A / 2A 12 - 18V 230 mV 150 & 150 ns The IR2121 is a high speed power MOSFET and Pac

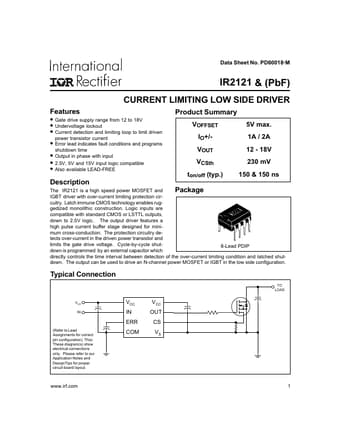

Datasheet Preview: IR2121 📥 Download PDF (156.36kb)
