IR2125PBF

Current Limiting Single Channel Driver

IR2125PBF Features

* Floating channel designed for bootstrap operation www.DataSheet4U.com Product Summary VOFFSET IO+/VOUT VCSth ton/off (typ.) 500V max. 1A / 2A 12 - 18V 230 mV 150 & 150 ns

* Fully operational to +500V Tolerant to negativ

IR2125PBF General Description

The IR2125(S) is a high voltage, high speed power MOSFET and IGBT driver with over-current limiting protection circuitry. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with 16-Lead SOIC 8-Lead PDIP standard CMOS or LSTTL ou.

IR2125PBF Datasheet (247.16 KB)

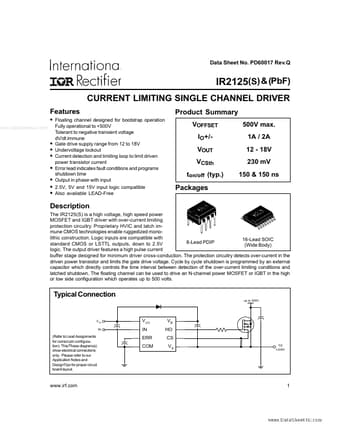

Preview of IR2125PBF PDF

Datasheet Details

Part number:

IR2125PBF

Manufacturer:

International Rectifier

File Size:

247.16 KB

Description:

Current limiting single channel driver.
