IR2125Z

CURRENT LIMITING SINGLE CHANNEL DRIVER

IR2125Z Features

* n Floating channel designed for bootstrap operation Fully operational to +400V Tolerant to negative transient voltage dV/dt immune n Gate drive supply range from 12 to 18V n Undervoltage lockout n Current detection and limiting loop to limit driven power transistor current n Error lead indicates fau

IR2125Z General Description

The IR2125Z is a high voltage, high speed power MOSFET and IGBT driver with over-current limiting protection circuitry. Proprietary GVIC and latch immune CMOS technologies enable ruggedized minilithic consturction. Logic inputs are compatible with standard CMOS or LSTTL outputs. the ouput driver fea.

IR2125Z Datasheet (165.80 KB)

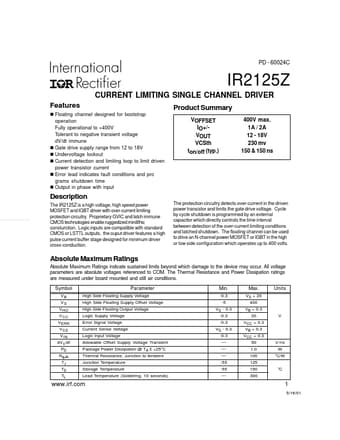

Preview of IR2125Z PDF

Datasheet Details

Part number:

IR2125Z

Manufacturer:

International Rectifier

File Size:

165.80 KB

Description:

Current limiting single channel driver.
