IR2125SPBF - CURRENT LIMITING SINGLE CHANNEL DRIVER

IR2125SPBF Description

Data Sheet No.PD60017 Rev.Q IR2125(S) & (PbF) CURRENT LIMITING SINGLE CHANNEL DRIVER .
The IR2125(S) is a high voltage, high speed power MOSFET and IGBT driver with over-current limiting protection circuitry.

IR2125SPBF Features

* Floating channel designed for bootstrap operation Fully operational to +500V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 12 to 18V Undervoltage lockout Current detection and limiting loop to limit driven power transistor current Error lead indicates fau

📥 Download Datasheet

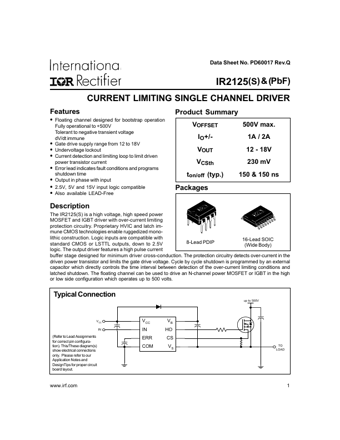

Preview of IR2125SPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IR2125SPBF
Manufacturer
International Rectifier
File Size
205.10 KB
Datasheet
IR2125SPBF-InternationalRectifier.pdf
Description
CURRENT LIMITING SINGLE CHANNEL DRIVER
