IR2122S

CURRENT SENSING SINGLE CHANNEL DRIVER

IR2122S Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout 3.3V, 5V and 15V input logic compatible FAULT lead

IR2122S General Description

The IR2122(S) is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V. The protection circuity detects over-current in th.

IR2122S Datasheet (91.81 KB)

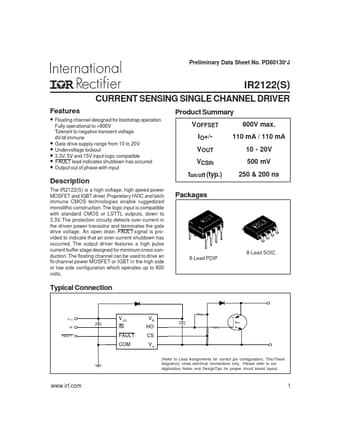

Preview of IR2122S PDF

Datasheet Details

Part number:

IR2122S

Manufacturer:

International Rectifier

File Size:

91.81 KB

Description:

Current sensing single channel driver.
