IR2213 Datasheet, Driver, International Rectifier

IR2213 Features

  • Driver
  • Floating channel designed for bootstrap operation www.DataSheet4U.com Product Summary VOFFSET IO+/VOUT ton/off (typ.) Delay Matching 1200V max. 1.7A / 2A 12 - 20V 280 & 225 n

PDF File Details

Part number:

IR2213

Manufacturer:

International Rectifier

File Size:

305.33kb

Download:

📄 Datasheet

Description:

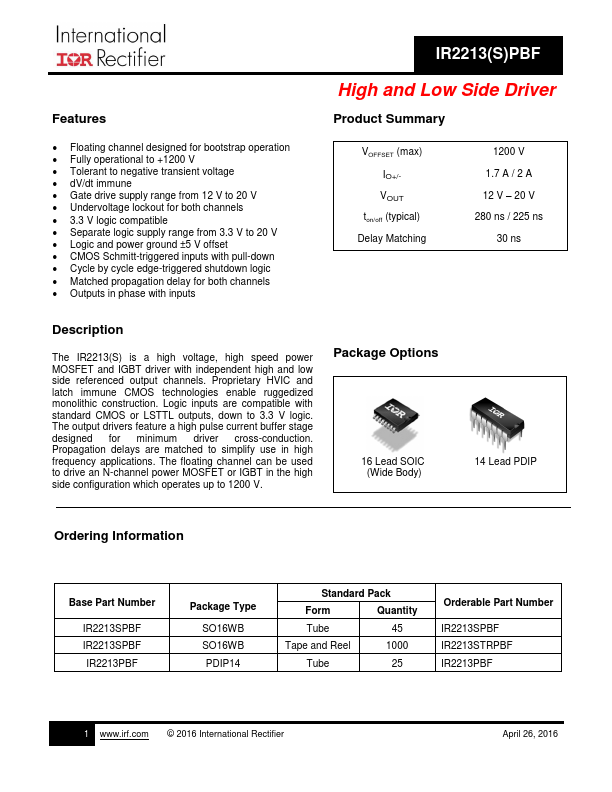

High and low side driver. The IR2213(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channel

Datasheet Preview: IR2213 📥 Download PDF (305.33kb)

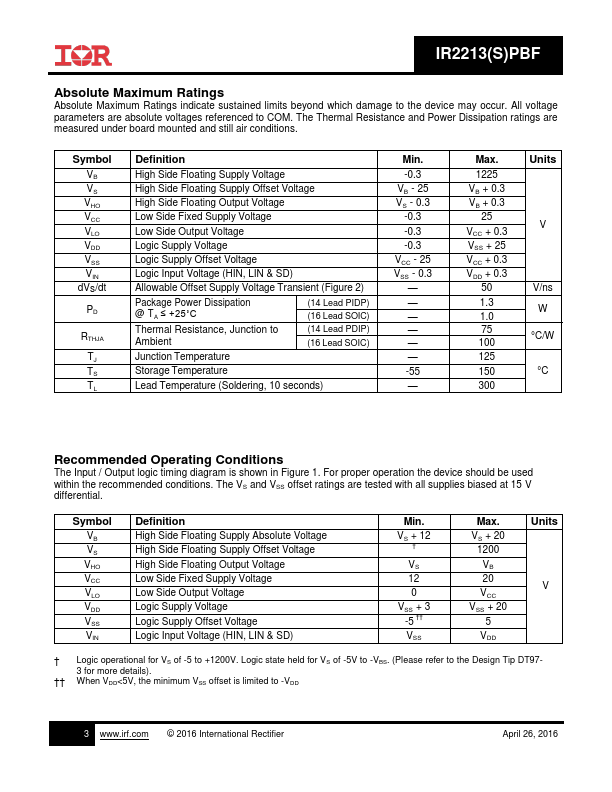

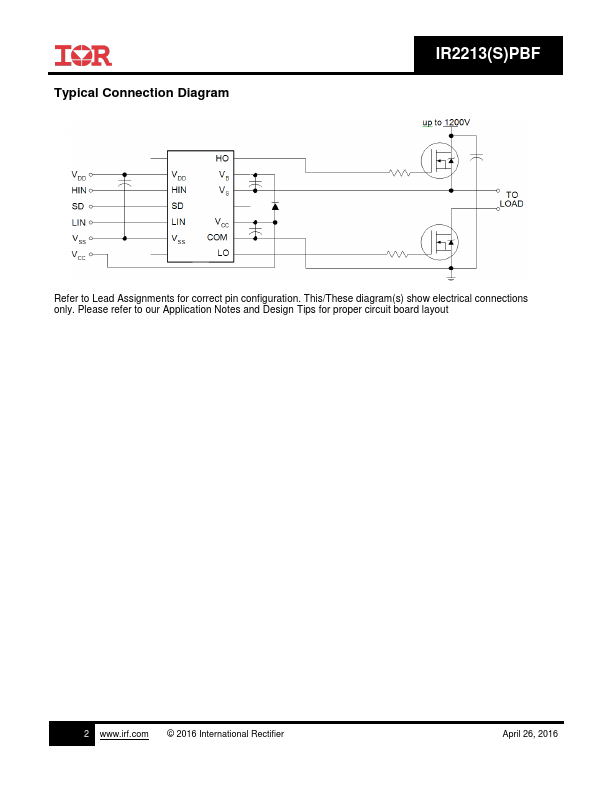

Page 2 of IR2213 Page 3 of IR2213

IR2213 Application

  • Applications The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 1200 v
