IR2213PBF - High and Low Side Driver

This page provides the datasheet information for the IR2213PBF, a member of the IR2213 High and Low Side Driver family.

Datasheet Summary

Description

The IR2213(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +1200 V.
  • Tolerant to negative transient voltage.
  • dV/dt immune.
  • Gate drive supply range from 12 V to 20 V.
  • Undervoltage lockout for both channels.
  • 3.3 V logic compatible.
  • Separate logic supply range from 3.3 V to 20 V.
  • Logic and power ground ±5 V offset.
  • CMOS Schmitt-triggered inputs with pull-down.
  • Cycle by cycle edge-triggered shutdown logic.
  • Matched propagation d.

📥 Download Datasheet

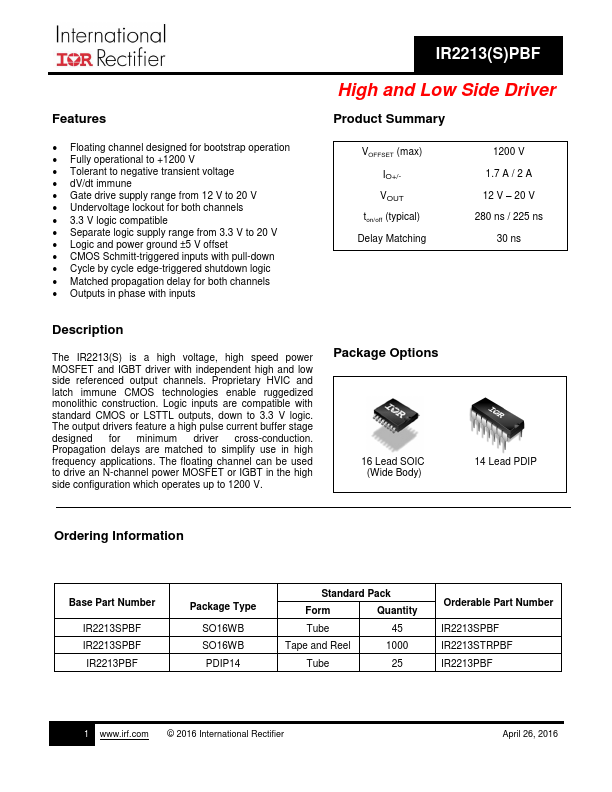

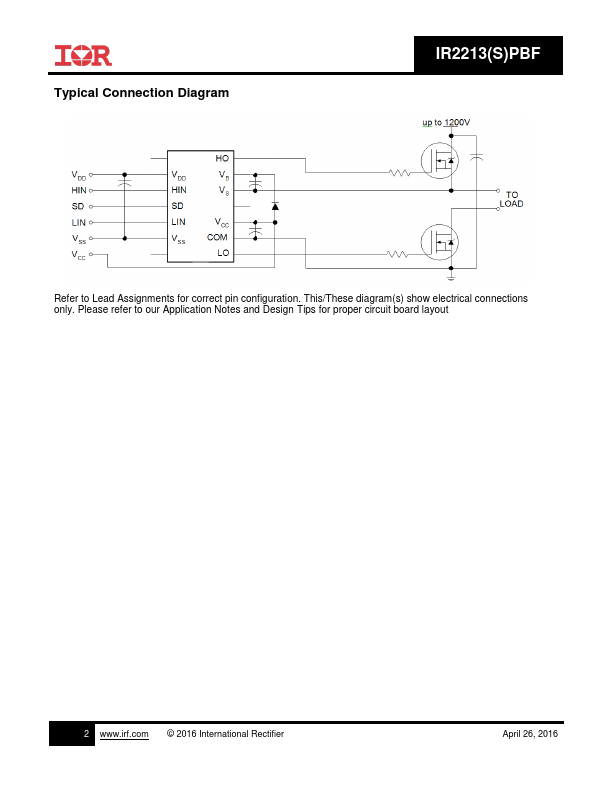

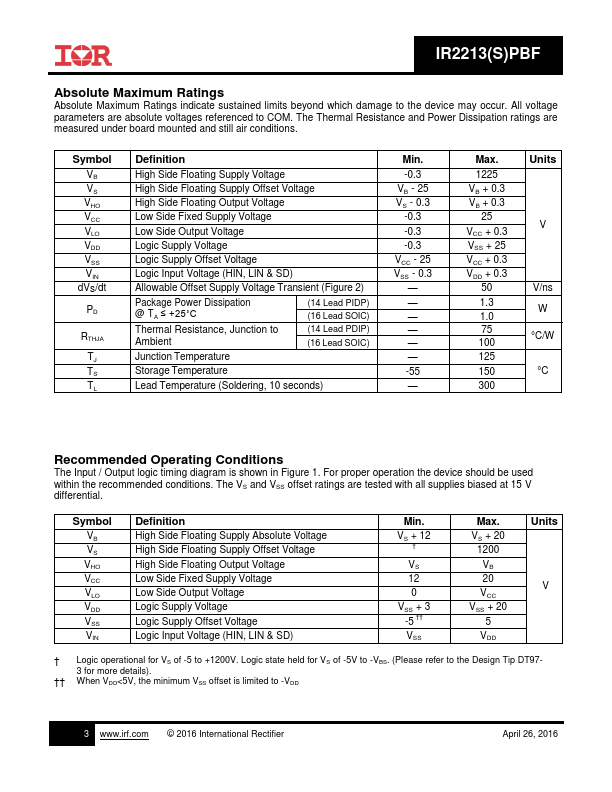

Datasheet preview – IR2213PBF

📁 Similar Datasheet

  • iR2200 - SERVICE HANDBOOK (Canon)
  • iR2200 - Copying Guide (Canon)
  • IR22BD - Infrared Single Gas Sensor (SGX)
  • IR22EJ - Infrared Single Gas Sensor (SGX)
  • IR22EM - Infrared Single Gas Sensor (SGX)
  • IR22GJ - Infrared Single Gas Sensor (SGX)
  • IR22GM - Infrared Single Gas Sensor (SGX)
  • IR204 - 3mm Infrared LED (Everlight Electronics)
  • IR204-A - 3mm Infrared LED (Everlight Electronics)
  • IR204-H16-L10 - 3mm Infrared LED (Everlight Electronics)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
Features  Floating channel designed for bootstrap operation  Fully operational to +1200 V  Tolerant to negative transient voltage  dV/dt immune  Gate drive supply range from 12 V to 20 V  Undervoltage lockout for both channels  3.3 V logic compatible  Separate logic supply range from 3.3 V to 20 V  Logic and power ground ±5 V offset  CMOS Schmitt-triggered inputs with pull-down  Cycle by cycle edge-triggered shutdown logic  Matched propagation delay for both channels  Outputs in phase with inputs IR2213(S)PBF High and Low Side Driver Product Summary VOFFSET (max) IO+/VOUT ton/off (typical) Delay Matching 1200 V 1.
