IR2213SPBF, IR2213 - High and Low Side Driver

International Rectifier

📥 Download Datasheet

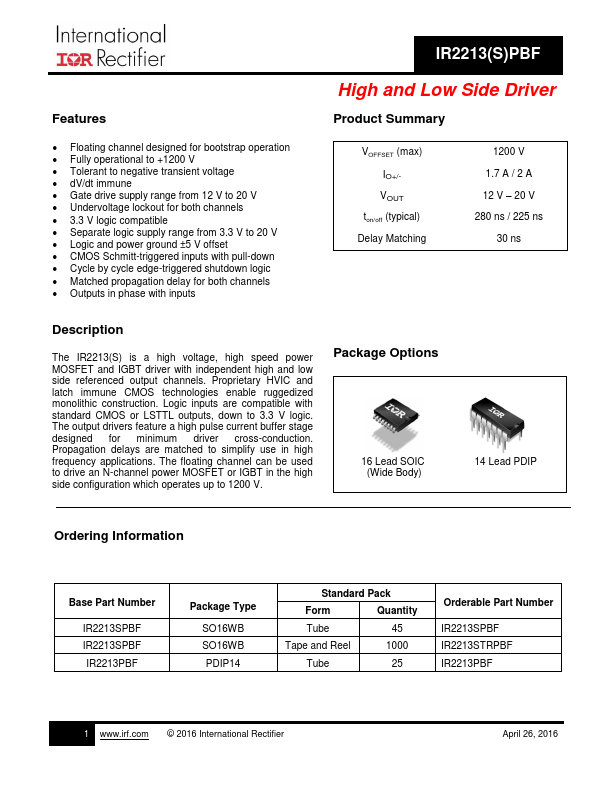

IR2213SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IR2213SPBF, IR2213. Please refer to the document for exact specifications by model.

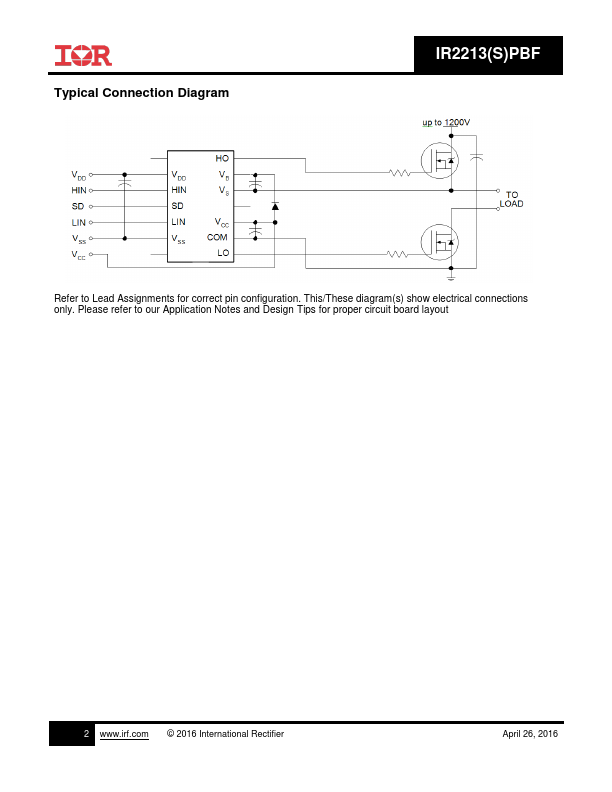

datasheet Preview Page 2

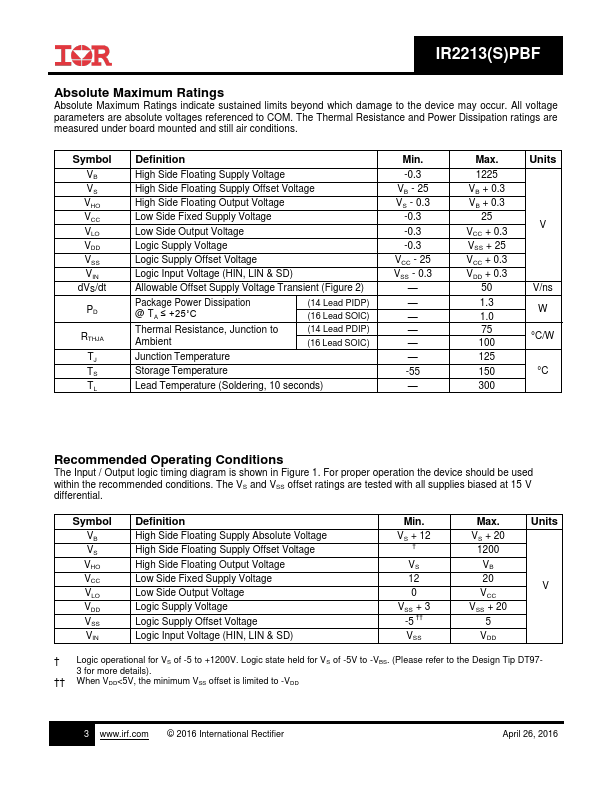

datasheet Preview Page 3

Datasheet Details

Part number	IR2213SPBF, IR2213
Manufacturer	International Rectifier ↗
File Size	1.19 MB
Description	High and Low Side Driver
Datasheet	IR2213_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IR2213SPBF, IR2213. Please refer to the document for exact specifications by model.

IR2213SPBF Product details

Description

The IR2213(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Features

Floating channel designed for bootstrap operation.
Fully operational to +1200 V.
Tolerant to negative transient voltage.
dV/dt immune.
Gate drive supply range from 12 V to 20 V.
Undervoltage lockout for both channels.
3.3 V logic compatible.
Separate logic supply range from 3.3 V to 20 V.
Logic and power ground ±5 V offset.
CMOS Schmitt-triggered inputs with pull-down.
Cycle by cycle edge-triggered shutdown logic.
Matched propagation d.
