IR3310 - PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH

Description

The IR 3310(S) is a Fully Protected 4 terminal high side switch.

The input signal is referenced to Vcc.

When the input voltage Vcc - Vin is higher than the specified Vih threshold, the output power MOSFET is turned-on.

Features

  • Load current feedback Programmable over current shutdown Active clamp E. S. D protection Input referenced to Vcc Over temperatue shutdown Reverse battery protection Product Summary Rds(on) Vcc. op. Current ratio Ishutdown Active clamp Load Dump Package 7mΩ max. 6 to 28V 8800 10 to 100A 35V 40V.

📥 Download Datasheet

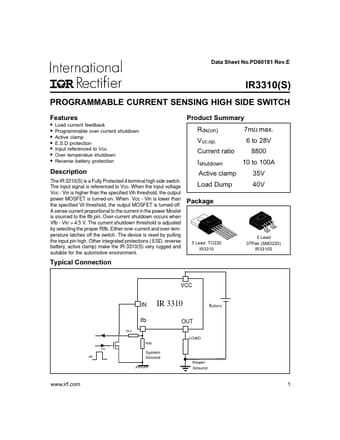

Datasheet preview – IR3310

Datasheet Details

Part number IR3310
Manufacturer International Rectifier
File Size 320.14 KB
Description PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH
Datasheet download datasheet IR3310 Datasheet
Additional preview pages of the IR3310 datasheet.

📁 Similar Datasheet

  • IR3300 - SERVICE HANDBOOK (Canon)
  • iR3300 - Copying Guide (Canon)
  • IR333 - Infrared Emitting Diodes (Everlight Electronics)
  • IR333-A - 5mm Infrared LED (Everlight Electronics)
  • IR333C-6-A - 5mm Infrared LED (Everlight Electronics)
  • IR333C-A - 5mm Infrared LED (Everlight Electronics)
  • IR333C-H0-L10 - 5mm Infrared LED (Everlight Electronics)
  • IR333Y-A - 5mm Infrared LED (Everlight Electronics)
  • IR33BC - Uncertified Infrared Single Gas Sensor (SGX)
  • IR300N-D0 - Infrared Emitter (CT Micro)
Other Datasheets by International Rectifier
  • IR3312 - PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH
  • IR3313PBF - PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH
  • IR3313S - PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH
  • IR3314PBF - Programmable Current Sense High Side Switch
  • IR3314SPBF - Programmable Current Sense High Side Switch
  • IR3316PBF - LOW EMI CURRENT SENSE HIGH SIDE SWITCH
  • IR3316S - Low EMI Current Sense High Side Switch
  • IR3316SPBF - LOW EMI CURRENT SENSE HIGH SIDE SWITCH

Full PDF Text Transcription

Click to expand full text
Data Sheet No.PD60181 Rev.E IR3310(S) PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH Features • • • • • • • Load current feedback Programmable over current shutdown Active clamp E.S.D protection Input referenced to Vcc Over temperatue shutdown Reverse battery protection Product Summary Rds(on) Vcc.op. Current ratio Ishutdown Active clamp Load Dump Package 7mΩ max. 6 to 28V 8800 10 to 100A 35V 40V Description The IR 3310(S) is a Fully Protected 4 terminal high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified Vih threshold, the output power MOSFET is turned-on. When Vcc - Vin is lower than the specified Vil threshold, the output MOSFET is turned-off.
