IRF1310NL - Power MOSFET

Datasheet Summary

Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • E CO M M E ND E D F O O TP R IN T 1 1.43 (.4 50 ) NO TE S: 1 D IM EN S IO N S A FTER SO L D ER D IP. 2 D IM EN S IO N IN G & TO LE RA N C IN G PE R A N S I Y1 4.5M , 198 2. 3 C O N TRO L LIN G D IM EN SIO N : IN C H . 4 H E ATSINK & L EA D D IM EN S IO N S D O N O T IN C LU D E B UR R S. LE A D A SS IG N M E N TS 1 - G A TE 2 - D R AIN 3 - S O U RC E 8.89 (.3 50 ) 17 .78 (.70 0) 3 .8 1 (.15 0) 2 .08 (.08 2) 2X 2.5 4 (.100 ) 2X Part Marking Information D2Pak IN TE R N A TIO N A L R E C T IF.

📥 Download Datasheet

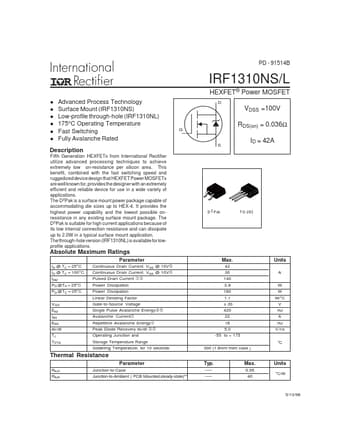

Datasheet preview – IRF1310NL

📁 Similar Datasheet

  • IRF1310NL - N-Channel MOSFET (INCHANGE)
  • IRF1310N - N-Channel MOSFET (INCHANGE)
  • IRF1310NS - N-Channel MOSFET (INCHANGE)
  • IRF131 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF131 - N-Channel Power MOSFET (Samsung semiconductor)
  • IRF130 - N-Channel Power MOSFET (Samsung semiconductor)
  • IRF130 - N-Channel Power MOSFET (Seme LAB)
  • IRF130 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF130 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF130 - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD - 91514B IRF1310NS/L HEXFET® Power MOSFET l l l l l l Advanced Process Technology Surface Mount (IRF1310NS) Low-profile through-hole (IRF1310NL) 175°C Operating Temperature Fast Switching Fully Avalanche Rated D VDSS =100V G S RDS(on) = 0.036Ω ID = 42A Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4.
