IRF7451PBF SMPS MOSFET

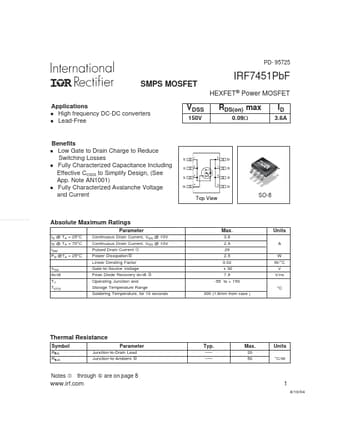

PD- 95725 SMPS MOSFET Applications l High frequency DC-DC converters l Lead-Free IRF7451PbF HEXFET® Power MOSFET VDSS 150V RDS(on) max 0.09W ID 3.6A Benefits Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current l S S S G 1 8 7 A A D D D D 2 3 6 4 5 Top View SO-8 www.DataSheet4U.com Absolute Maximum Ratings Parameter ID @ TA = .

IRF7451PBF Features

* d capacitance that gives the same charging time When mounted on 1 inch square copper board. as Coss while VDS is rising from 0 to 80% VDSS. Starting TJ = 25°C, L = 33mH, RG = 25Ω, IAS = 3.6A.

* ISD ≤ 2.2A, di/dt ≤ 180A/µs, VDD ≤ V(BR)DSS, TJ ≤ 150°C Data and specifications subject to chan
