IRF740AS - Power MOSFET

IRF740AS Description

IRF740AS, SiHF740AS, IRF740AL, SiHF740AL Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configur.

IRF740AS Features

* Halogen-free According to IEC 61249-2-21 Definition
* Low Gate Charge Qg Results in Simple Drive Requirement
* Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Effective Coss specifie

IRF740AS Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptible Power Supply
* High speed Power Switching TYPICAL SMPS TOPOLOGIES
* Single Transistor Flyback Xfmr. Reset
* Single Transistor Forward Xfmr. Reset (Both for US Line Input Only) ORDERING INFORMATION Package

📥 Download Datasheet

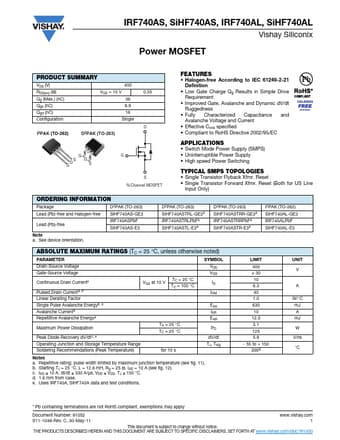

Preview of IRF740AS PDF
datasheet Preview Page 2 datasheet Preview Page 3
