IRF744 Power MOSFET

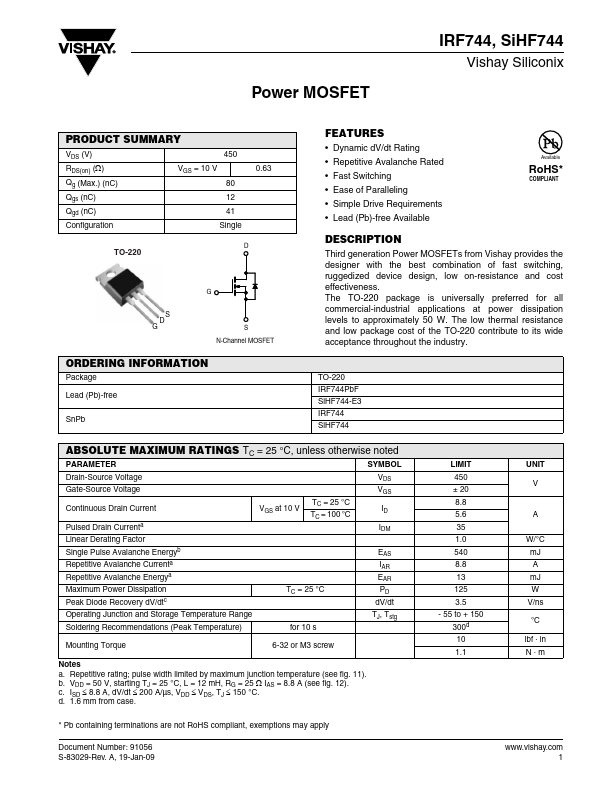

📥 Download Datasheet  Datasheet Preview Page 1

Description

Power MOSFET IRF744, SiHF744 Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 450 VGS = 10 V 80.
Third generation Power MOSFETs from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resista.

📥 Download Datasheet

Preview of IRF744 PDF

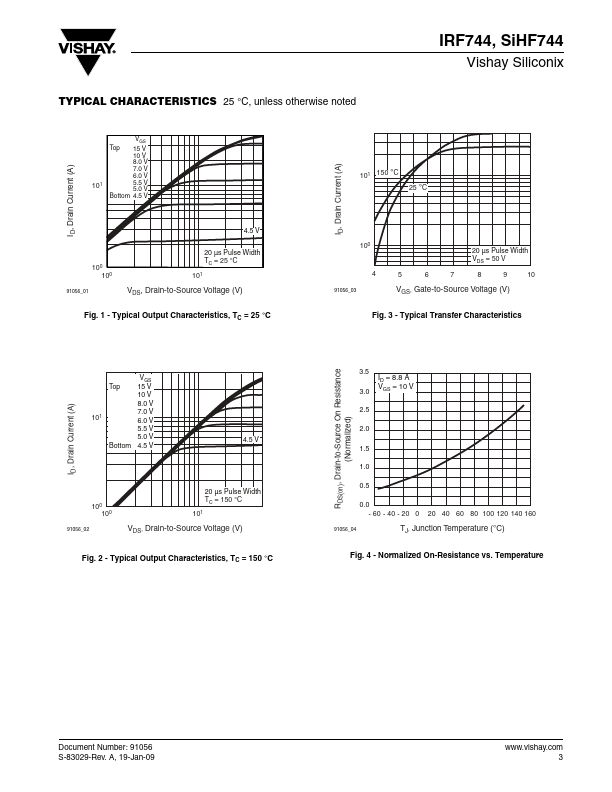

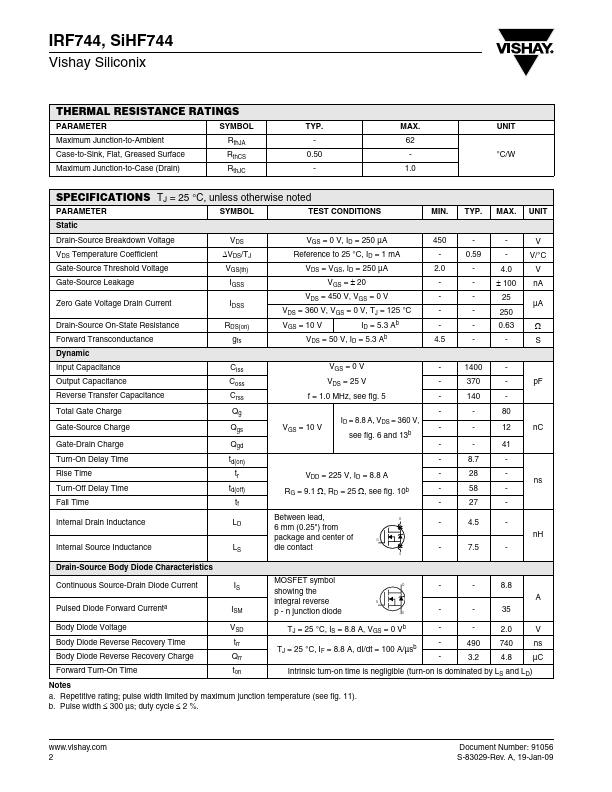

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRF744
Manufacturer
Vishay ↗
File Size
137.63 KB
Datasheet
IRF744-Vishay.PDF
Description
Power MOSFET

Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Lead (Pb)-free Available Available RoHS

Applications

* at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. TO-220 IRF744PbF SiHF744-E3 IRF744 SiHF744 ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted PARAMETER SYMBOL Dra
