IRF7402 - HEXFET Power MOSFET

Datasheet Summary

Description

Fifth Generation HEXFET® power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

Features

  • . WORLD.

📥 Download Datasheet

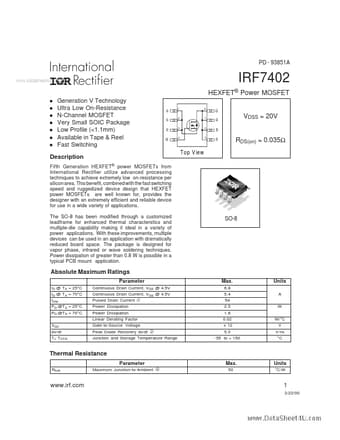

Datasheet preview – IRF7402

📁 Similar Datasheet

  • IRF740 - N-channel MOSFET (STMicroelectronics)
  • IRF740 - Power MOSFET (Vishay)
  • IRF740 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF7401 - Thermoelectric Cooler Controller (Analog Devices)
  • IRF7404 - Thermoelectric Cooler Controller (Analog Devices)
  • IRF740A - Power MOSFET (Vishay)
  • IRF740A - N-Channel MOSFET (INCHANGE)
  • IRF740AL - Power MOSFET (Vishay)
  • IRF740AS - Power MOSFET (Vishay)
  • IRF740B - 400V N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD - 93851A www.datasheet4u.com IRF7402 HEXFET® Power MOSFET S S S G 1 8 l l l l l l l Generation V Technology Ultra Low On-Resistance N-Channel MOSFET Very Small SOIC Package Low Profile (<1.1mm) Available in Tape & Reel Fast Switching A A D D D D 2 7 VDSS = 20V RDS(on) = 0.035Ω 3 6 4 5 Description Fifth Generation HEXFET® power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
