IRF7401PBF-1 Datasheet (252.41 KB)
IRF7401PBF-1
International Rectifier
252.41 KB
Power mosfet.
VDS RDS(on) max
(@VGS = 4.5V)
Qg ID
(@TA = 25°C)
20 0.022
48 8.7
V Ω nC A

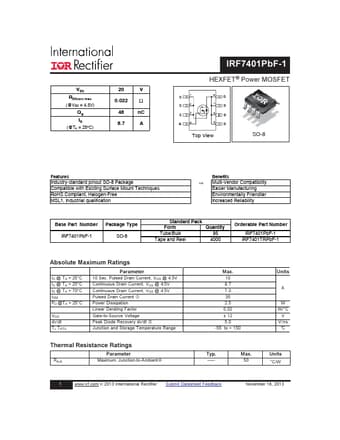

IRF7401PbF-1
HEXFET® Power MOSFET
S1 S2 S3 G4
AA 8D 7D 6D 5D
Top View.
* Industry-standard pinout SO-8 Package Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification Benefits ⇒ Multi-Vendor Compatibility Easier Manufacturing Environmentally Friendlier Increased Reliability Base Part Number Package Type IRF7401PbF-
