IRFB52N15D Power MOSFET

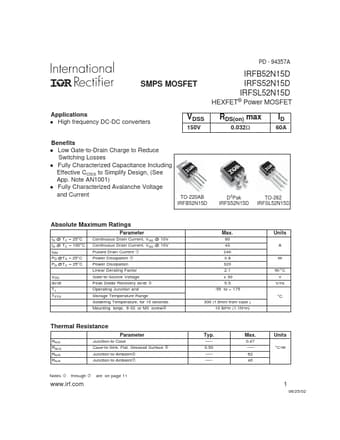

PD - 94357A SMPS MOSFET IRFB52N15D IRFS52N15D IRFSL52N15D HEXFET® Power MOSFET Applications l High frequency DC-DC converters VDSS 150V RDS(on) max 0.032Ω ID 60A Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current TO-220AB IRFB52N15D D2Pak TO-262 IRFS52N15D IRFSL52N15D Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 10.

IRFB52N15D Features

* CODE 1789 ASSEMBLED ON WW 19, 1997 IN THE ASSEMBLY LINE "C" INT ERNAT IONAL RECT IF IER LOGO AS S EMBLY LOT CODE PART NUMBER DATE CODE YEAR 7 = 1997 WEEK 19 LINE C 8 www.irf.com D2Pak Package Outline IRFB/IRFS/IRFSL52N15D 1.40 (.055) MAX. 10.54 (.415) 10.29 (.405) -A- 2 4.69 (.185) 4.20 (.1
