IRFB7730, IRFB7730PbF Datasheet - International Rectifier

IRFB7730 Power MOSFET

Application  Brushed motor drive applications  BLDC motor drive applications Battery powered circuits  Half-bridge and full-bridge topologies  Synchronous rectifier applications  Resonant mode power supplies  OR-ing and redundant power switches  DC/DC and AC/DC converters  DC/AC inverters Benefits  Improved gate, avalanche and dynamic dV/dt ruggedness  Fully characterized capacitance and avalanche SOA  Enhanced body diode dV.

IRFB7730PbF-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFB7730, IRFB7730PbF. Please refer to the document for exact specifications by model.

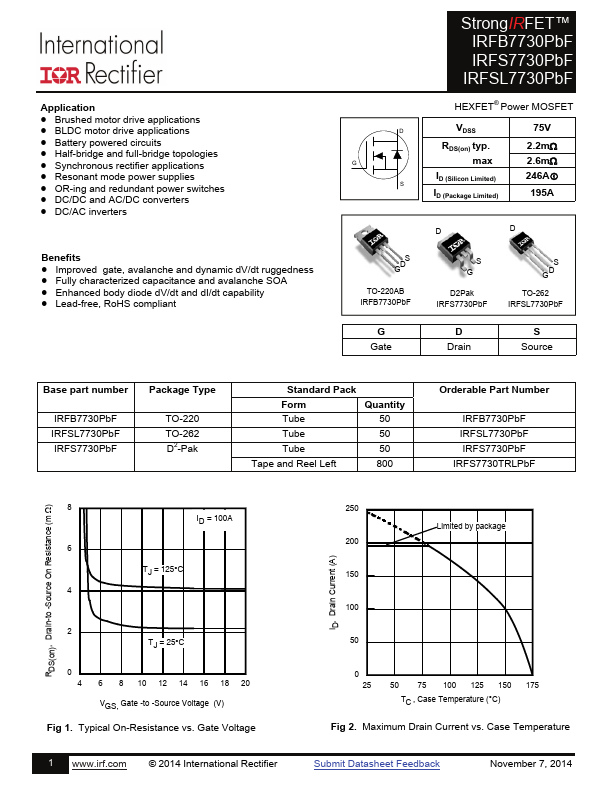

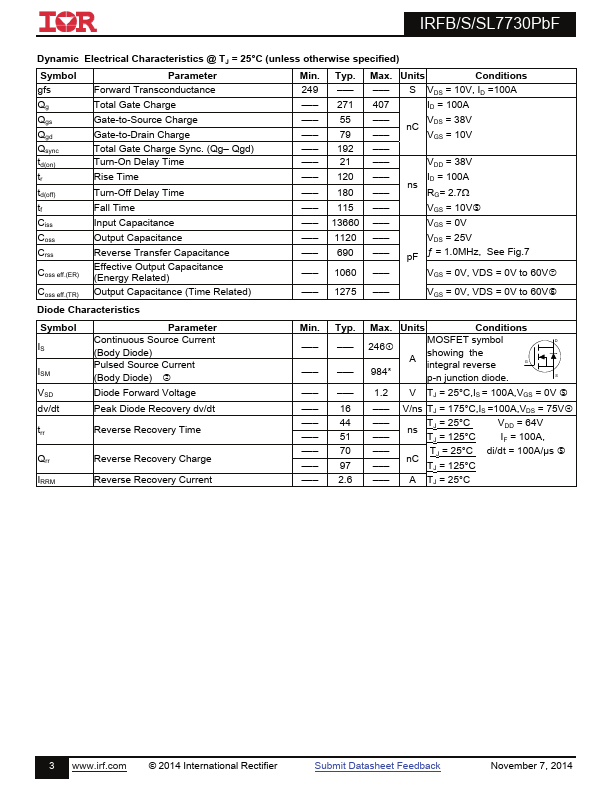

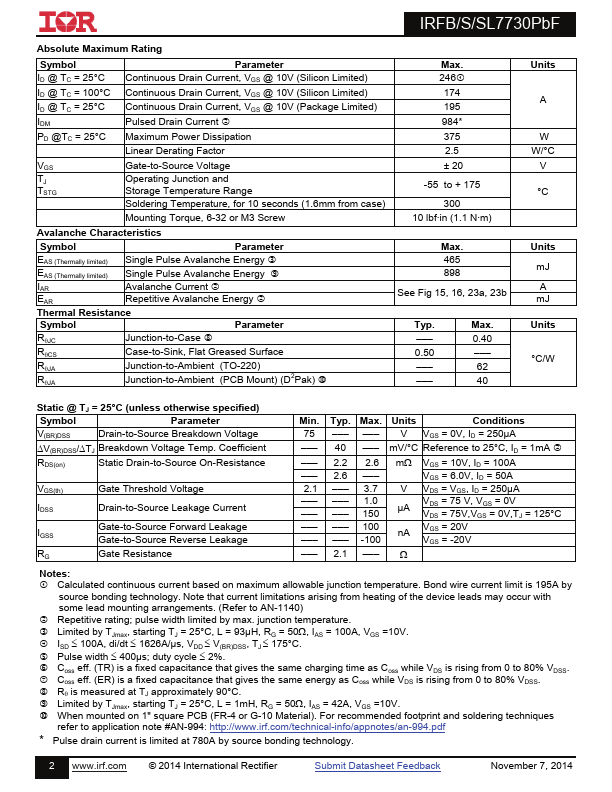

IRFB7730 Datasheet Preview Page 2 IRFB7730 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFB7730, IRFB7730PbF

Manufacturer:

International Rectifier

File Size:

631.46 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFB7730, IRFB7730PbF.
Please refer to the document for exact specifications by model.
