IRFB7740PBF Power MOSFET

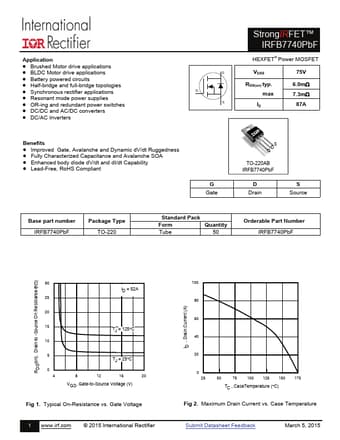

Application  Brushed Motor drive applications  BLDC Motor drive applications Battery powered circuits  Half-bridge and full-bridge topologies  Synchronous rectifier applications  Resonant mode power supplies  OR-ing and redundant power switches  DC/DC and AC/DC converters  DC/AC Inverters StrongIRFET™ IRFB7740PbF HEXFET® Power MOSFET D VDSS 75V RDS(on) typ. 6.0m G max 7.3m S ID 87A Benefits  Improved Gate, Avalanche an.

IRFB7740PBF Features

* lanche Current (A) 1 Allowed avalanche Current vs avalanche pulsewidth, tav, assuming j = 25°C and Tstart = 150°C. (Single Pulse) 0.1 1.0E-06 1.0E-05 1.0E-04 1.0E-03 tav (sec) 1.0E-02 1.0E-01 Fig 15. Avalanche Current vs. Pulse Width EAR , Avalanche Energy (mJ) 160 TOP Single Pulse 1
