IRFBC40A Power MOSFET

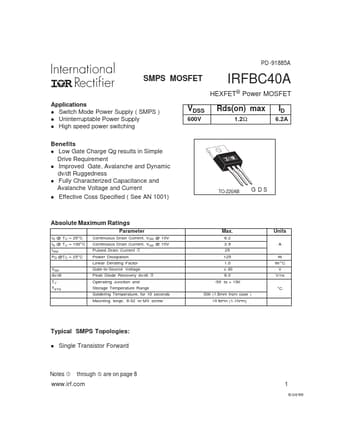

PD -91885A SMPS MOSFET IRFBC40A HEXFET® Power MOSFET Applications l Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss Specified ( See AN 1001) VDSS 600V Rds(on) max 1.2Ω ID 6.2A TO-220AB G DS Absolute Maximum Ratings Parameter ID @ TC = 25°.

IRFBC40A Features

* U T L IN E C O N F O R M S T O J E D E C O U T L IN E T O -2 2 0 A B . 4 H E A T S IN K & L E A D M E A S U R E M E N T S D O N O T IN C L U D E B U R R S . Part Marking Information TO-220AB E X A M P L E : TH IS IS A N IR F 1 0 1 0 W IT H A S S E M B L Y LO T CO DE 9B1M A IN TE R N A T IO N A L
