IRFI4019H-117P, DIGITAL AUDIO MOSFET

DIGITAL AUDIO MOSFET .
Gate Drain Source This Digital Audio MosFET Half-Bridge is specifically designed for Class D audio amplifier applications.

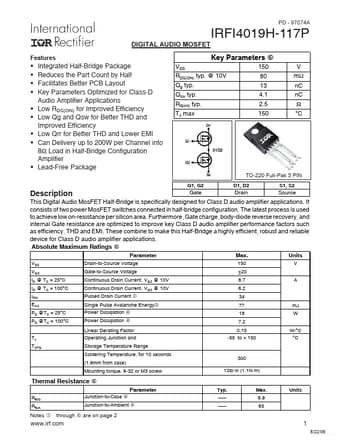

datasheet Preview Page 1 from Datasheet4u.com

IRFI4019H-117P_InternationalRectifier.pdf

IRFI4019H-117P Datasheet Preview — Preview of IRFI4019H-117P PDF

Datasheet Details

Part number:

IRFI4019H-117P

Manufacturer:

International Rectifier

File Size:

311.57 KB

Description:

DIGITAL AUDIO MOSFET

Applications

* Low RDS(ON) for Improved Efficiency Low Qg and Qsw for Better THD and Improved Efficiency Low Qrr for Better THD and Lower EMI Can Delivery up to 200W per Channel into 8Ω Load in Half-Bridge Configuration Amplifier Lead-Free Package VDS RDS(ON) typ. @ 10V Qg typ. Qsw typ. RG(int) typ. TJ max G1 S1
