IRFI4020H-117P - DIGITAL AUDIO MOSFET

Description

This Digital Audio MosFET Half-Bridge is specifically designed for Class D audio amplifier applications.

consists of two power MosFET switches connected in half-bridge configuration.

to achieve low on-resistance per silicon area.

Features

  • Ÿ Integrated half-bridge package Ÿ Reduces the part count by half Ÿ Facilitates better PCB layout Ÿ Key parameters optimized for Class-D audio amplifier.

📥 Download Datasheet

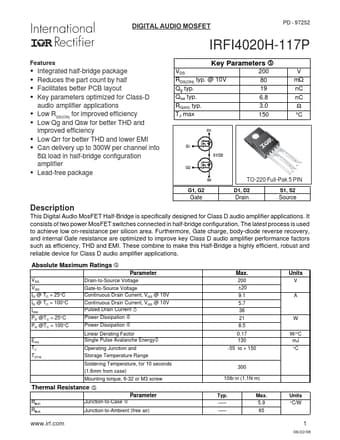

Datasheet preview – IRFI4020H-117P

📁 Similar Datasheet

Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
DIGITAL AUDIO MOSFET PD - 97252 IRFI4020H-117P Features Ÿ Integrated half-bridge package Ÿ Reduces the part count by half Ÿ Facilitates better PCB layout Ÿ Key parameters optimized for Class-D audio amplifier applications Ÿ Low RDS(ON) for improved efficiency Ÿ Low Qg and Qsw for better THD and improved efficiency Ÿ Low Qrr for better THD and lower EMI Ÿ Can delivery up to 300W per channel into 8Ω load in half-bridge configuration amplifier Ÿ Lead-free package gKey Parameters VDS 200 RDS(ON) typ. @ 10V 80 Qg typ. 19 Qsw typ. 6.8 RG(int) typ. 3.0 TJ max 150 V m: nC nC Ω °C D1 G1 S1/D2 G2 S2 TO-220 Full-Pak 5 PIN G1, G2 Gate D1, D2 Drain S1, S2 Source Description This Digital Audio MosFET Half-Bridge is specifically designed for Class D audio amplifier applications.
