IRFR3706 Datasheet - International Rectifier

IRFR3706 - Power MOSFET

PD - 93936A SMPS MOSFET IRFR3706 IRFU3706 HEXFET® Power MOSFET Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l High Frequency Buck Converters for Computer Processor Power Benefits l l l VDSS 20V RDS(on) max 9.0mΩ ID 75A Ultra-Low Gate Impedance Very Low RDS(on) at 4.5V VGS Fully Characterized Avalanche Voltage and Current D-Pak IRFR3706 I-Pak IRFU3706 Absolute Maximum Ratings Symbol VDS VGS ID @ TC = 25°C

IRFR3706 Features

* 5 .2 1 (.2 0 5 ) 4 1 .2 7 ( .0 5 0 ) 0 .8 8 ( .0 3 5 ) 2 .3 8 (.0 9 4 ) 2 .1 9 (.0 8 6 ) 0 .5 8 (.0 2 3 ) 0 .4 6 (.0 1 8 ) L E A D A S S IG N M E N T S 1 - GATE 2 - D R A IN 3 - SOURCE 4 - D R A IN 6 .4 5 (.2 4 5 ) 5 .6 8 (.2 2 4 ) 1 .5 2 (.0 6 0 ) 1 .1 5 (.0 4 5 ) 1 -B 2.2 8 (.0 9 0) 1.9 1 (.0 7

IRFR3706_InternationalRectifier.pdf

Preview of IRFR3706 PDF

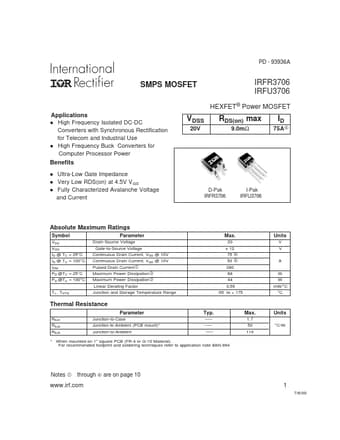

IRFR3706 Datasheet Preview Page 2 IRFR3706 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFR3706

Manufacturer:

International Rectifier

File Size:

133.78 KB

Description:

Power mosfet.
