IRFS4010, IRFS4010PbF Datasheet - International Rectifier

IRFS4010 Power MOSFET

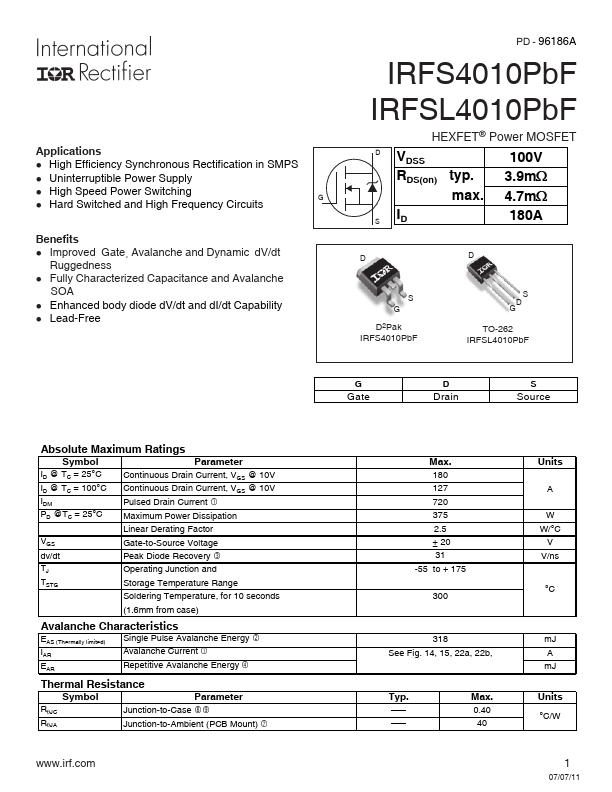

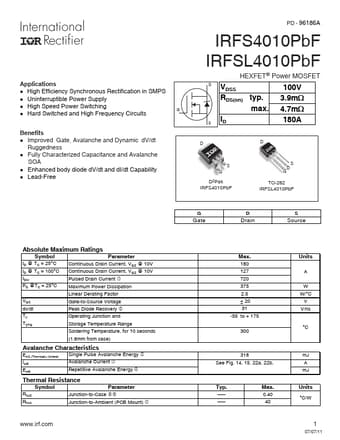

Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching G l Hard Switched and High Frequency Circuits Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free PD - 96186A IRFS4010PbF IRFSL4010PbF HEXFET® Power MOSFET D VDSS RDS(on) typ. max. S ID 100V 3.9m: 4.7m: 180A D D S G D2Pak IRFS4010PbF .

IRFS4010PbF-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFS4010, IRFS4010PbF. Please refer to the document for exact specifications by model.

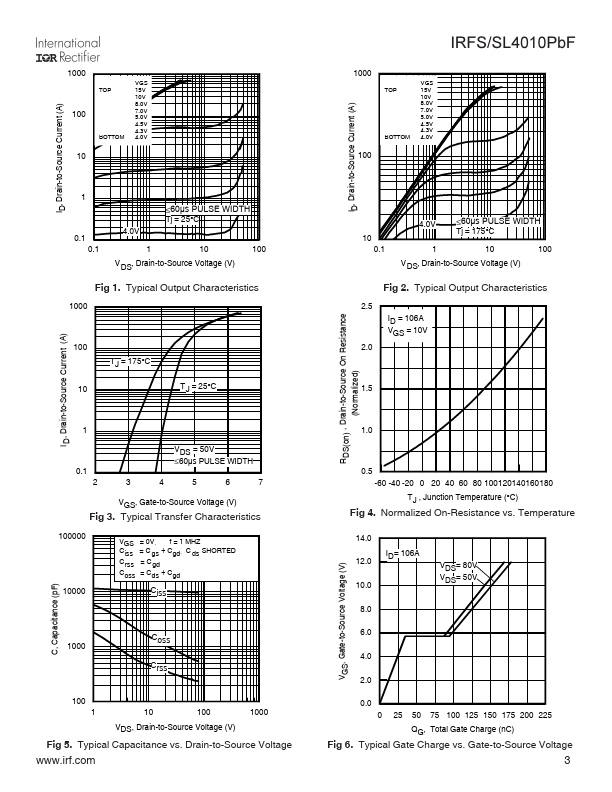

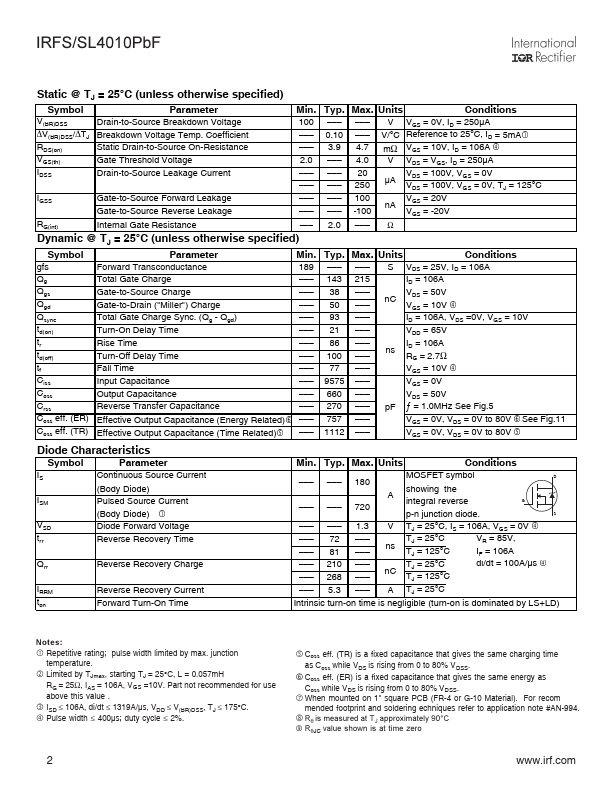

IRFS4010 Datasheet Preview Page 2 IRFS4010 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFS4010, IRFS4010PbF

Manufacturer:

International Rectifier

File Size:

279.43 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFS4010, IRFS4010PbF.
Please refer to the document for exact specifications by model.
