IRFS4410Z, IRFB4410ZPbF Datasheet - International Rectifier

IRFS4410Z Power MOSFET

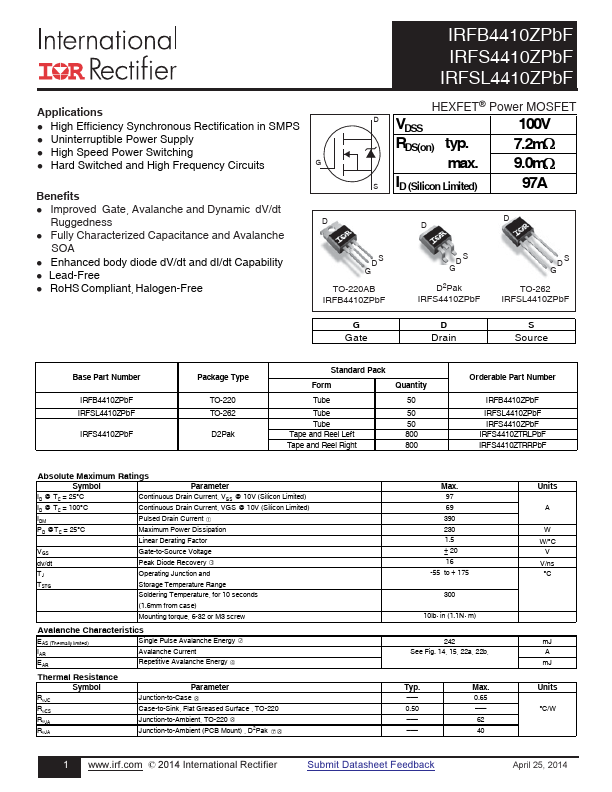

IRFB4410ZPbF IRFS4410ZPbF IRFSL4410ZPbF Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free l RoHS Compliant, Halogen-Free HEXFET® Power MOSFET D VDSS RDS(on) typ. 100V 7.2m: G max. 9.0m: S ID (Sili.

IRFB4410ZPbF-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFS4410Z, IRFB4410ZPbF. Please refer to the document for exact specifications by model.

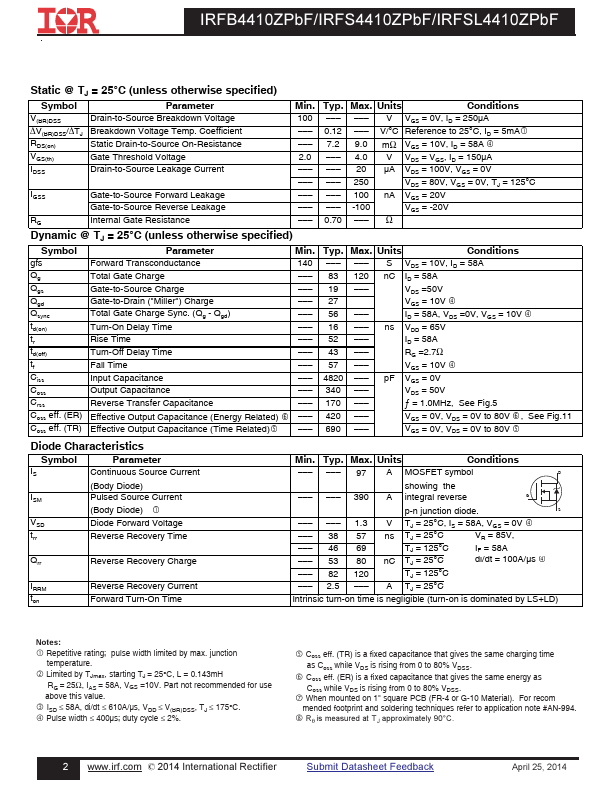

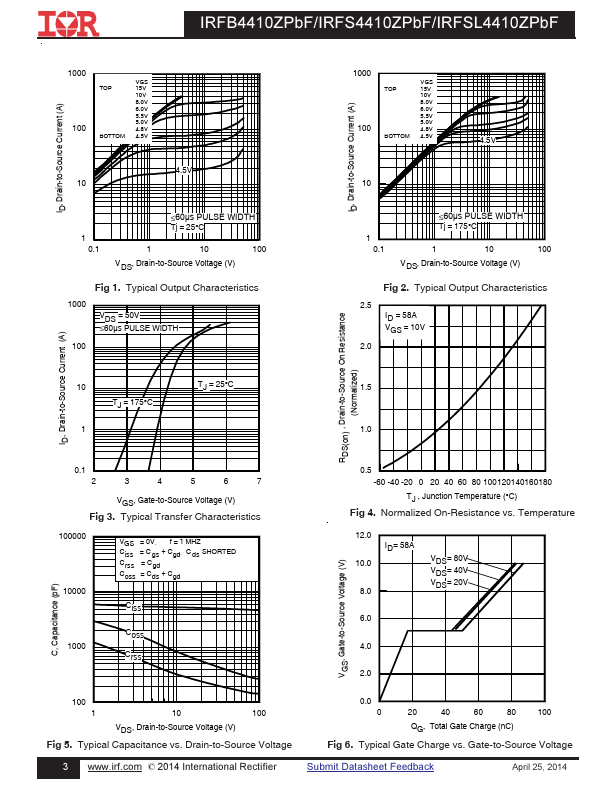

IRFS4410Z Datasheet Preview Page 2 IRFS4410Z Datasheet Preview Page 3

Datasheet Details

Part number:

IRFS4410Z, IRFB4410ZPbF

Manufacturer:

International Rectifier

File Size:

346.86 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFS4410Z, IRFB4410ZPbF.
Please refer to the document for exact specifications by model.
