IRFSL3206, IRFB3206PBF Datasheet - International Rectifier

IRFSL3206 Power MOSFET

Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free l RoHS Compliant, Halogen-Free IRFB3206PbF IRFS3206PbF IRFSL3206PbF HEXFET® Power MOSFET D VDSS RDS(on) typ. max. 60V 2.4m: 3.0m: G ID (Silicon L.

IRFB3206PBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFSL3206, IRFB3206PBF. Please refer to the document for exact specifications by model.

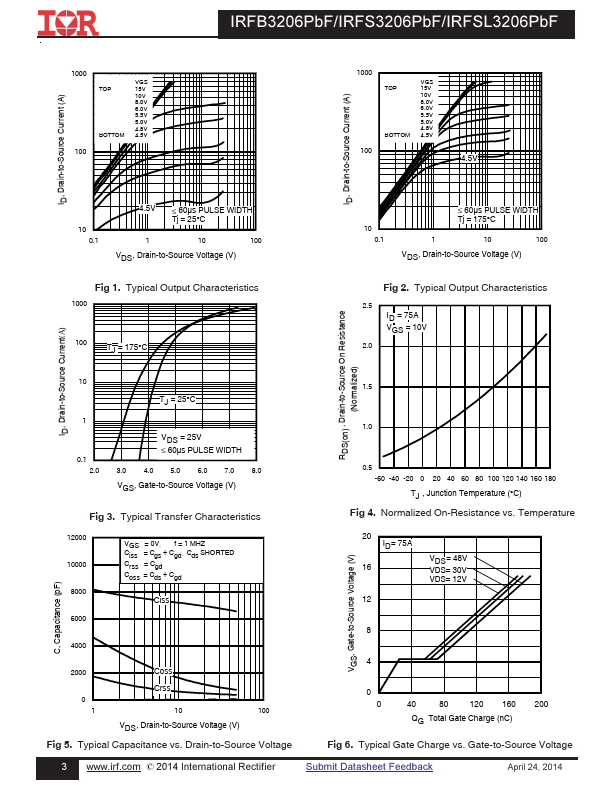

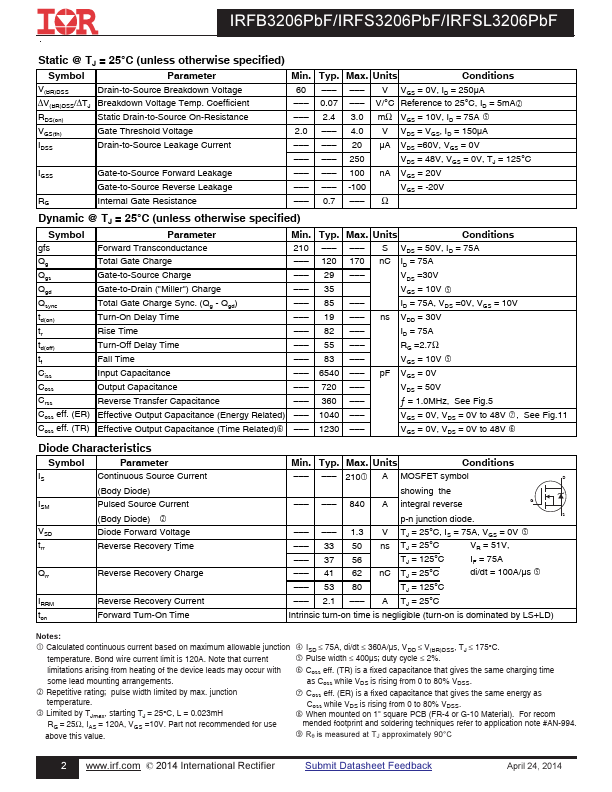

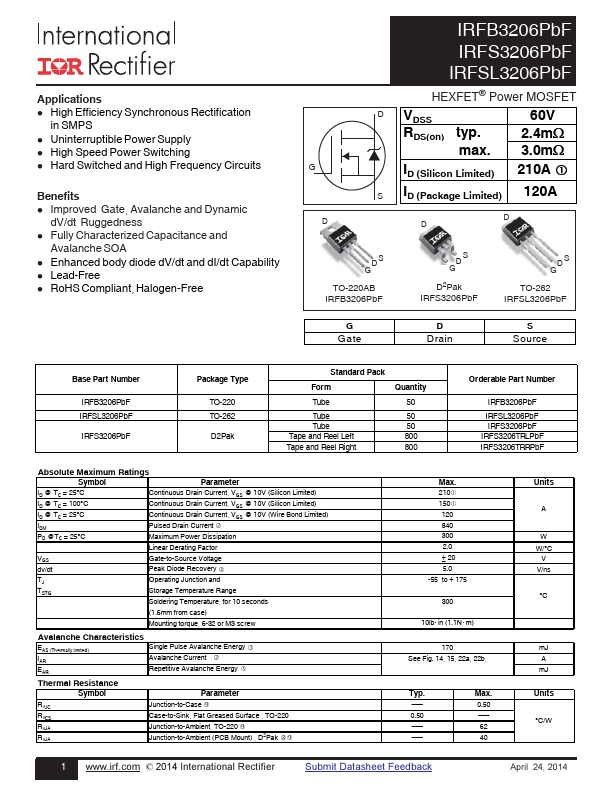

IRFSL3206 Datasheet Preview Page 2 IRFSL3206 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFSL3206, IRFB3206PBF

Manufacturer:

International Rectifier

File Size:

339.97 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFSL3206, IRFB3206PBF.
Please refer to the document for exact specifications by model.
