IRFU120N, IRFR120N, Power MOSFET

PD - 91365B IRFR/U120N HEXFET® Power MOSFET l l l l l Surface Mount (IRFR120N) Straight Lead (IRFU120N) Advanced Process Technology Fast Switching F.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon.

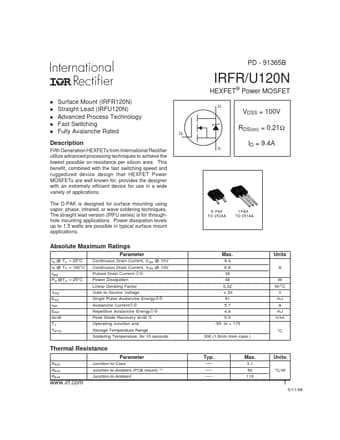

datasheet Preview Page 1 from Datasheet4u.com

IRFR120N_InternationalRectifier.pdf

IRFU120N Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFU120N, IRFR120N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFU120N, IRFR120N

Manufacturer:

International Rectifier

File Size:

152.66 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFU120N, IRFR120N.
Please refer to the document for exact specifications by model.

Features

* 3 5 ) 1 .0 2 (.0 4 0 ) 1 .6 4 (.0 2 5 ) 1 2 3 -B 1 .5 2 (.0 6 0 ) 1 .1 5 (.0 4 5 ) 3X 1 .1 4 (.0 4 5 ) 2 X 0 .7 6 (.0 3 0 ) 2 .2 8 (.0 9 0 ) 4 .5 7 (.1 8 0 ) 0 .8 9 (.0 3 5 ) 0 .6 4 (.0 2 5 ) 0 .2 5 (.0 1 0 ) M A M B 0 .5 1 (.0 2 0 ) M IN . 1 0 .4 2 (.4 1 0 ) 9 .4 0 (.3 7 0 ) 1 .2 7 (.0 5 0 ) 0 .8

Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for throughhole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D -P A K T O -252 A A
