IRFU130A - Power MOSFET

Product Overview

Fairchild Semiconductor

Part number	IRFU130A
Manufacturer	Fairchild Semiconductor
File Size	261.31 KB
Description	Power MOSFET
Datasheet	IRFU130A Datasheet
Note	This datasheet PDF includes multiple part numbers: IRFU130A, IRFR130A. Please refer to the document for exact specifications by model.

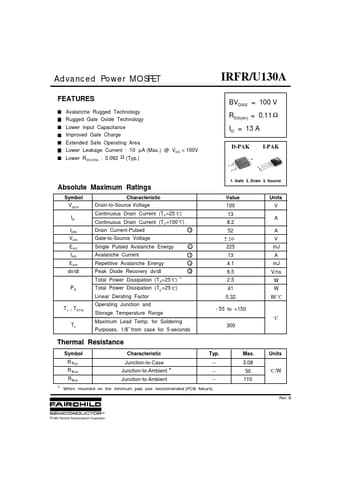

Additional preview pages of the IRFU130A datasheet.

Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µ A (Max. ) @ VDS = 100V Lower RDS(ON) : 0.092 Ω (Typ. ) IRFR/U130A BVDSS = 100 V RDS(on) = 0.11 Ω ID = 13 A D-PAK 2 1 3 1 I-PAK 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C) Continuous Drain Current (TC=100 C).
