IRFU13N15DPBF, IRFR13N15DPBF Datasheet - International Rectifier

IRFU13N15DPBF HEXFET Power MOSFET

PD - 95549A SMPS MOSFET Applications High frequency DC-DC converters l Lead-Free l IRFR13N15DPbF IRFU13N15DPbF HEXFET® Power MOSFET VDSS 150V RDS(on) max 0.18Ω ID 14A Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current D-Pak IRFR13N15D I-Pak IRFU13N15D www.DataSheet4U.com Absolute Maximum Ratings Parameter ID @ TC = 25°C ID.

IRFU13N15DPBF Features

* ODE P = DES IGNAT ES LEAD-FREE PRODUCT (OPT IONAL) YEAR 9 = 1999 WEEK 19 A = AS S EMB LY SIT E CODE www.irf.com 9 IRFR/U13N15DPbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476

IRFR13N15DPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFU13N15DPBF, IRFR13N15DPBF. Please refer to the document for exact specifications by model.

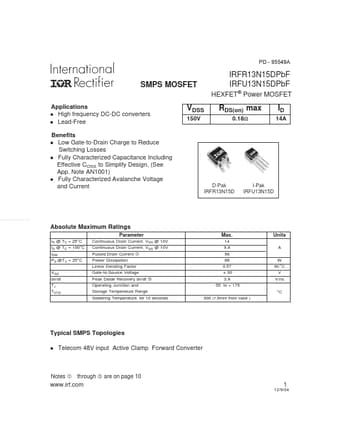

IRFU13N15DPBF Datasheet Preview Page 2 IRFU13N15DPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRFU13N15DPBF, IRFR13N15DPBF

Manufacturer:

International Rectifier

File Size:

244.95 KB

Description:

Hexfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFU13N15DPBF, IRFR13N15DPBF.
Please refer to the document for exact specifications by model.
