IRFU214B - 250V N-Channel MOSFET

Product Overview

Fairchild Semiconductor

Part number	IRFU214B
Manufacturer	Fairchild Semiconductor
File Size	647.48 KB
Description	250V N-Channel MOSFET
Datasheet	IRFU214B Datasheet

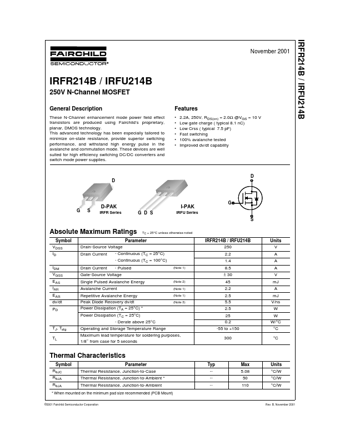

Additional preview pages of the IRFU214B datasheet.

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

2.2A, 250V, RDS(on) = 2.0Ω @VGS = 10 V Low gate charge ( typical 8.1 nC) Low Crss ( typical 7.5 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !.
◀ ▲.
G S D-PAK IRFR Series I-PAK G D S IRFU Series G! ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuo.
