IRFU220B

200V N-Channel MOSFET

IRFU220B Features

* 4.6A, 200V, RDS(on) = 0.8Ω @VGS = 10 V Low gate charge ( typical 12 nC) Low Crss ( typical 10 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !

* ◀ ▲

* G S D-PAK IRFR Series I-PAK G D S IRFU Seri

IRFU220B General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

IRFU220B Datasheet (665.76 KB)

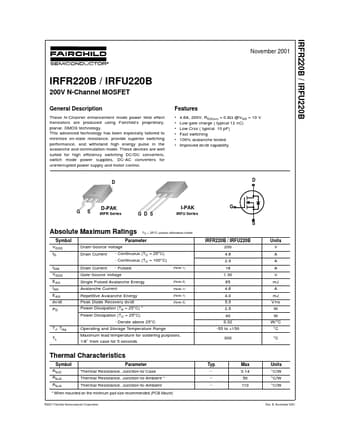

Preview of IRFU220B PDF

Datasheet Details

Part number:

IRFU220B

Manufacturer:

Fairchild Semiconductor

File Size:

665.76 KB

Description:

200v n-channel mosfet.
