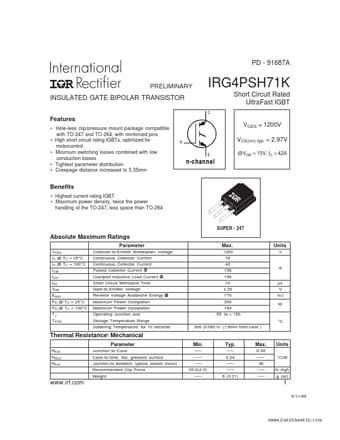

IRG4PSH71K - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

Datasheet Details

Part number	IRG4PSH71K
Manufacturer	International Rectifier
File Size	150.57 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG4PSH71K_InternationalRectifier.pdf

Hole-less clip/pressure mount package compatible with TO-247 and TO-264, with reinforced pins.
High short circuit rating IGBTs, optimized for motorcontrol.
Minimum switching losses combined with low conduction losses.
Tightest parameter distribution.
Creepage distance increased to 5.35mm VCES = 1200V G E VCE(on) typ. = 2.97V @VGE = 15V, IC = 42A n-channel Benefits.
Highest current rating IGBT.
Maximum power density, twice the po.
