IRG4PC40S Datasheet PDF - IRF INSULATED GATE BIPOLAR TRANSISTOR Specs

IRG4PC40S - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

Standard: Optimized for minimum saturation voltage and low operating frequencies ( < 1kHz).
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
Industry standard TO-247AC package C Standard Speed IGBT VCES = 600V G E VCE(on) typ. = 1.32V @VGE = 15V, IC = 31A n-channel Benefits.
Generation 4 IGBT's offer highest efficiency available.
IGBT's optimized for specified.

Datasheet Details

Part number	IRG4PC40S
Manufacturer	IRF
File Size	143.01 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG4PC40S Datasheet

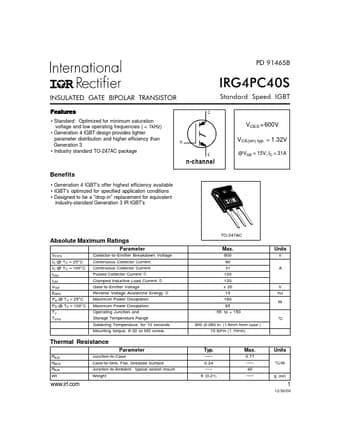

Additional preview pages of the IRG4PC40S datasheet.
