IRG4PC40F - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode).
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
Industry standard TO-247AC package C Fast Speed IGBT VCES = 600V G E VCE(on) typ. = 1.50V @VGE = 15V, IC = 27A n-channel Benefits.
Generation 4 IGBT's offer highest efficiency available.
IGBT's optimized for specified.

Datasheet Details

Part number	IRG4PC40F
Manufacturer	IRF
File Size	145.35 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG4PC40F Datasheet

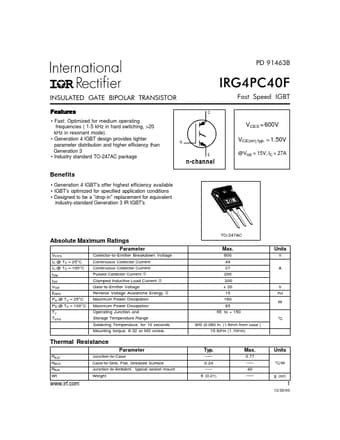

Additional preview pages of the IRG4PC40F datasheet.

📁 Similar Datasheet

IRG4PC40FDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40FPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40KDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40KPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40SPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40UDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40UPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC40WPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

IRG4PC20UPBF - UltraFast Speed IGBT (International Rectifier)

IRG4PC30F - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)

Full PDF Text Transcription

Click to expand full text

PD 91463B IRG4PC40F INSULATED GATE BIPOLAR TRANSISTOR Features • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode). • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 • Industry standard TO-247AC package C Fast Speed IGBT VCES = 600V G E VCE(on) typ. = 1.
