IRHM7054, IRHM8054 Datasheet - International Rectifier

IRHM7054 - RADIATION HARDENED POWER MOSFET THRU-HOLE

www.datasheet4u.com PD - 90887E RADIATION HARDENED POWER MOSFET THRU-HOLE (TO-254AA) Product Summary Part Number IRHM7054 IRHM3054 IRHM4054 IRHM8054 Radiation Level 100K Rads (Si) 300K Rads (Si) 600K Rads (Si) 1000K Rads (Si) RDS(on) 0.027Ω 0.027Ω 0.027Ω 0.027Ω ID 35 A 35 A 35 A 35 A IRHM7054 JANSR2N7394 60V, N-CHANNEL REF: MIL-PRF-19500/603 RAD Hard HEXFET TECHNOLOGY ™ ® QPL Part Number JANSR2N7394 JANSF2N7394 JANSG2N7394 JANSH2N7394 TO-254AA International Rectifier’s RAD

IRHM7054 Features

* n n n n n n n n n Single Event Effect (SEE) Hardened Low RDS(on) Low Total Gate Charge Proton Tolerant Simple Drive Requirements Ease of Paralleling Hermetically Sealed Ceramic Package Light Weight Absolute Maximum Ratings Parameter ID @ VGS = 12V, TC = 25°C ID @ VGS = 12V, TC = 100°C IDM PD @ TC

IRHM8054_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRHM7054, IRHM8054. Please refer to the document for exact specifications by model.

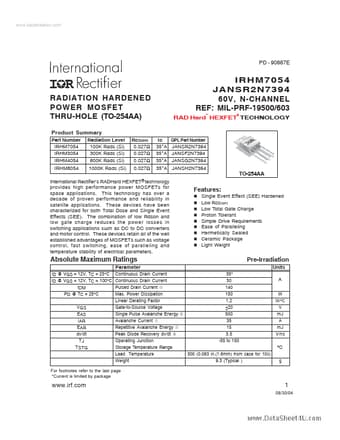

IRHM7054 Datasheet Preview Page 2 IRHM7054 Datasheet Preview Page 3

Datasheet Details

Part number:

IRHM7054, IRHM8054

Manufacturer:

International Rectifier

File Size:

202.82 KB

Description:

Radiation hardened power mosfet thru-hole.

Note:

This datasheet PDF includes multiple part numbers: IRHM7054, IRHM8054.
Please refer to the document for exact specifications by model.
