IRHSLNA53064

RAD-HARD SYNCHRONOUS RECTIFIER

IRHSLNA53064 Features

* n Co-Pack N-channel RAD-Hard MOSFET and Schottky Diode n Ideal for Synchronous Rectifiers in DC-DC n n n n Converters up to 75A Output Low Conduction Losses Low Switching Losses Low Vf Schottky Rectifier Refer to IRHSNA57064 for Lower RDS(on) Absolute Maximum Ratings Parameter ID @ VGS = 12V, TC

IRHSLNA53064 General Description

The SynchFet family of Co-Pack RAD-Hard MOSFETs and Schottky diodes offers the designer an innovative, board space saving solution for switching regulator and power management applications. RAD-Hard MOSFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon ar.

IRHSLNA53064 Datasheet (137.98 KB)

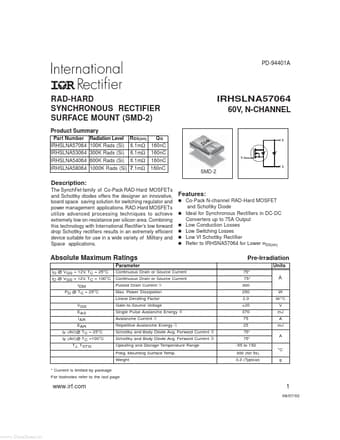

Preview of IRHSLNA53064 PDF

Datasheet Details

Part number:

IRHSLNA53064

Manufacturer:

International Rectifier

File Size:

137.98 KB

Description:

Rad-hard synchronous rectifier.
PD-94401A RAD-HARD SYNCHRONOUS RECTIFIER SURFACE MOUNT (SMD-2) Product Summary Part Number Radiation Level IRHSLNA57064 100K Rads (Si) IRHSLNA53064 3.
