IRH-5-30-T110 - Encapsulated 150-Watt Isolated DC-DC Converter

IRH-5-30-T110 Description

IRH Series Encapsulated Half-Brick 150-Watt Isolated DC-DC Converter Output Voltage (V) 5 12 24 Output Current (A) 30 12.5 6.25 Input Voltage (V) 1.

IRH-5-30-T110 Features

* DC input range: 57.6-160V (Covers 96V and 110V input range)
* Encapsulated circuitry for optimal thermal/vibration performance
* Meet requirements of EN50155
* Size: 61.0mm X 57.9mm X 12.7mm (2.4” X 2.28” X 0.5”)
* Industry standard pinout options
* 5 sided metal shielding

📥 Download Datasheet

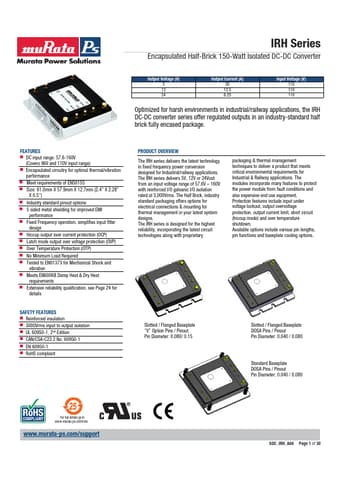

Preview of IRH-5-30-T110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRH-5-30-T110
Manufacturer
muRata
File Size
3.58 MB
Datasheet
IRH-5-30-T110-muRata.pdf
Description
Encapsulated 150-Watt Isolated DC-DC Converter
