IRK236, IRK166 STANDARD RECOVERY DIODES

International Rectifier

Description

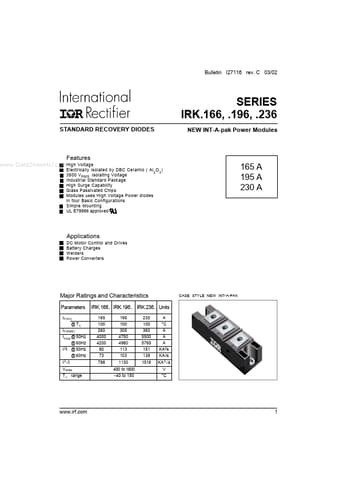

Bulletin I27116 rev.C 03/02 SERIES IRK.166, .196, .236 STANDARD RECOVERY DIODES NEW INT-A-pak Power Modules .

📥 Download Datasheet

IRK236 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRK236, IRK166. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRK236, IRK166
Manufacturer: International Rectifier
File Size: 361.58 KB
Datasheet: IRK166_InternationalRectifier.pdf
Description: STANDARD RECOVERY DIODES
Note: This datasheet PDF includes multiple part numbers: IRK236, IRK166.
Please refer to the document for exact specifications by model.

Features

* www. DataSheet4U. comHigh Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power diodes in four Basic Configurations Simple Mounting UL E78996 approved 165 A 195 A

Applications

* DC Motor Control and Drives Battery Charges Welders Power Converters Major Ratings and Characteristics Parameters IF(AV) @ TC IF(RMS) IFSM @ 50Hz @ 60Hz I 2t @ 50Hz @ 60Hz I 2√ t VRRM TJ range CASE STYLE NEW INT-A-PAK IRK.166.. IRK.196.. IRK.236.. Units 165 100 260 4000 4200 80 73 798 195 100 305
