IRKJ91 Datasheet - International Rectifier

IRKJ91, ADD-A-pak GEN V Power Modules

Bulletin I27141 rev.F 10/02 IRK.91 SERIES STANDARD DIODES .
The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior m.

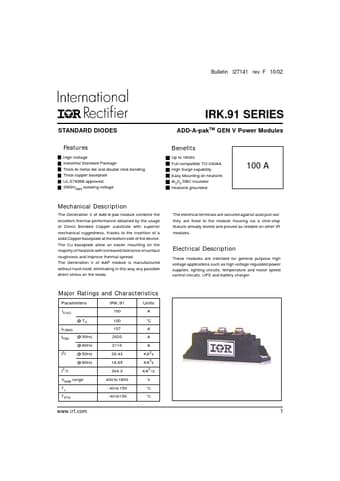

datasheet Preview Page 1 from Datasheet4u.com

IRKJ91_InternationalRectifier.pdf

IRKJ91 Datasheet Preview — Preview of IRKJ91 PDF

Datasheet Details

Part number:

IRKJ91

Manufacturer:

International Rectifier

File Size:

109.89 KB

Description:

ADD-A-pak GEN V Power Modules

Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulator

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. Major Ratings and Characteristics Parameters IF(AV) @ TC IF(RMS) IFSM 2 IRK.91 100 100 157 Units A °C A A A KA2s KA2s KA2√s V o o @ 50Hz @ 60Hz 2020 2110 20.4
