IRKN26

ADD-A-pak-TM GEN V Power Modules

IRKN26 Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulato

IRKN26 General Description

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting .

IRKN26 Datasheet (177.18 KB)

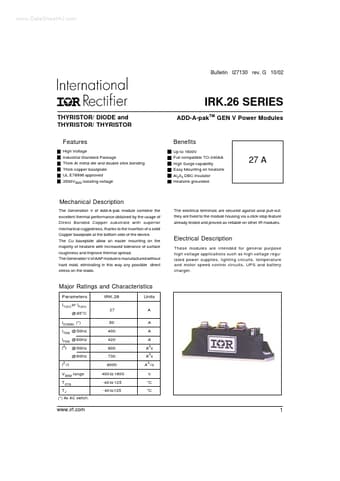

Preview of IRKN26 PDF

Datasheet Details

Part number:

IRKN26

Manufacturer:

International Rectifier

File Size:

177.18 KB

Description:

Add-a-pak-tm gen v power modules.
