IRKN41

(IRKN41 / IRKN56) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

IRKN41 Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulato

IRKN41 General Description

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting .

IRKN41 Datasheet (271.02 KB)

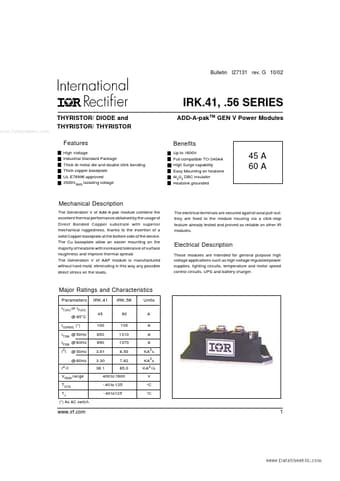

Preview of IRKN41 PDF

Datasheet Details

Part number:

IRKN41

Manufacturer:

International Rectifier

File Size:

271.02 KB

Description:

(irkn41 / irkn56) thyristor/ diode and thyristor/ thyristor.
