IRKN71 Datasheet - International Rectifier

IRKN71 (IRKN71 / IRKN91) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting .

IRKN71 Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulator Heatsink grounded 75 A 95 A M

IRKN71_InternationalRectifier.pdf

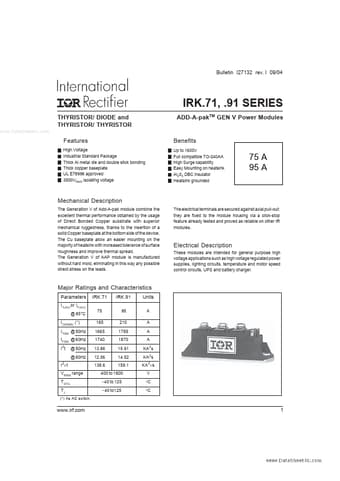

IRKN71 Datasheet Preview — Preview of IRKN71 PDF

Datasheet Details

Part number:

IRKN71

Manufacturer:

International Rectifier

File Size:

343.41 KB

Description:

(irkn71 / irkn91) thyristor/ diode and thyristor/ thyristor.
