IRKU105 Datasheet - International Rectifier

IRKU105, ADD-A-pak GEN V Power Modules THYRISTOR

Bulletin I27136 rev.E 10/02 IRKU/V105 SERIES THYRISTOR/ THYRISTOR ADD-A-pakTM GEN V Power Modules .
The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior m.

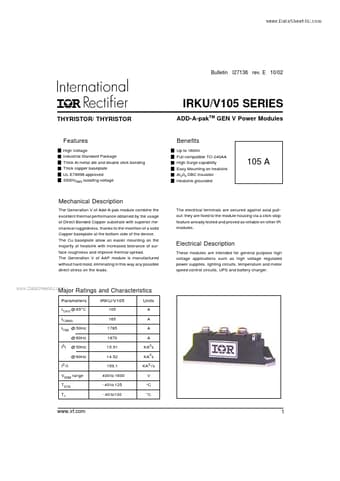

datasheet Preview Page 1 from Datasheet4u.com

IRKU105_InternationalRectifier.pdf

IRKU105 Datasheet Preview — Preview of IRKU105 PDF

Datasheet Details

Part number:

IRKU105

Manufacturer:

International Rectifier

File Size:

155.78 KB

Description:

ADD-A-pak GEN V Power Modules THYRISTOR

Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulator Heatsink grounded 105 A Mecha

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. www. DataSheet4U. com Major Ratings and Characteristics Parameters IT(AV) @ 85°C IT(RMS) ITSM @ 50Hz @ 60Hz I t 2 IRKU/V105 105 165 1785 1870 15.91 14.52 159.1 40
