IRKU91 Datasheet, Thyristor, International Rectifier

IRKU91 Features

  • Thyristor High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Module

PDF File Details

Part number:

IRKU91

Manufacturer:

International Rectifier

File Size:

214.05kb

Download:

📄 Datasheet

Description:

Thyristor. The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrat

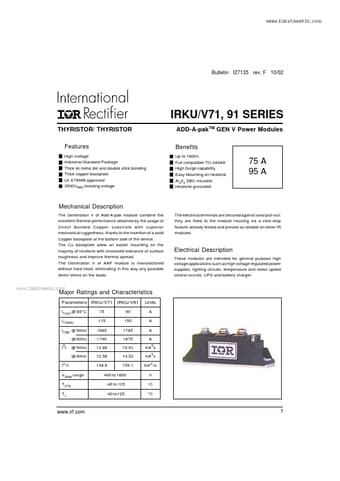

Datasheet Preview: IRKU91 📥 Download PDF (214.05kb)
Page 2 of IRKU91 Page 3 of IRKU91

IRKU91 Application

  • Applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger
